H07RN8-F 450/750V Harmonized Rubber Cables
Applications
These cables are designed for use in submersible pumpsand similar applications in water for industrial use up toa water depth of 10 m and water temperature-rangesup to 40℃, also approved for dry, humid and wetapplications.
Standards
DIN VDE 0282 Part1 and Part 16
HD 22.1
HD 22.16 S1

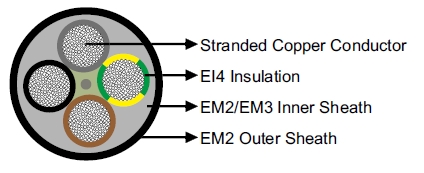

Construction
Conductors: Strandedcopper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Insulation: Rubbertype EI4according to DIN VDE 0282 Part 16.
InnerSheath(for ≥ 10 mm² ormore than 5 cores): Rubbertype EM2/EM3according to DIN VDE 0282 Part 16.
Outer Sheath: Rubber type EM2according to DIN VDE 0282 Part 16.

H07RN8-F 450/750V Harmonized Rubber Cables
