NTMCWOEU Flexible Medium-Voltage Single Core Cable
Applications
These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.
Standards
VDE 0250 Part 813

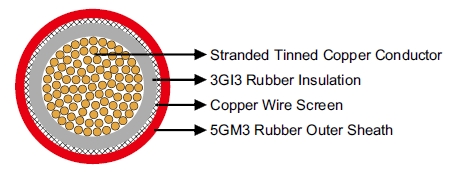

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Special conductive rubber.
Insulation: EPR type 3GI3.
Outer Conductor Layer:Special conductive rubber.
Screen: Spiral of tinned copper wires.
Outer Sheath: PCP type 5GM3.

NTMCWOEU Flexible Medium-Voltage Single Core Cable
