Mining Cables (AS_NZS Standard)
AS/NZS 1802:2003 Reeling & Trailing Cables
Type 245 1.1 to 6.6KV
Applications
These very flexible cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables.Cable has 3 central pilots for earth continuity monitoring and for control circuits.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

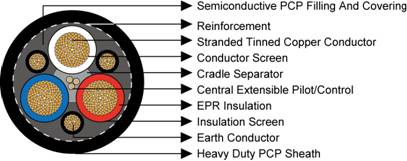

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: SemiconductivePCP filling andcovering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor
3×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.

Type 245 1.1 to 6.6KV
