Mining Cables (AS_NZS Standard)
AS/NZS 1972:2006 Cables
Type A & B 1.1/1.1KV
Applications
These cablesare used as 1.1kV cables to distribute power within themine,suitable for use in underground coal mines. For Type A cables,optional 3 pilots can be selected.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

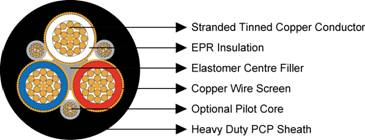

Construction
Conductors: Stranded tinned annealed copper conductor.
Insulation: EPR.
Filling: Elastomer centre filler.
Optional Pilot Core (Type A only): CPE compositeinsulated and covered pilot conductor.
Screen (earth conductor): Copper wire.
Sheath: Heavy duty PCP sheath.
