(N)SSHOEU 0.6/1kV Heavy Duty Flexible Cable
Applications
These cables are used for connection of mobileequipment and machines under very high mechanicalloads in dry and damp areas, outdoors and in explosionhazard areas, particularly in mining and at quarries andbuilding sites.
Standards
Based on VDE 0250 Part 812

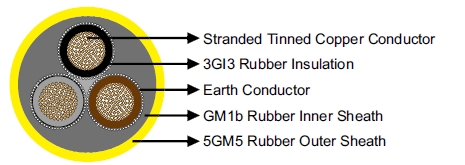

Construction
Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295.
Insulation: Rubber type 3GI3.
Pilot Cores (optional):Tinned copper conductor with EPR insulation.
Earth Conductor: Spiral of tinnedcopper wires.
InnerSheath: Rubber type GM1b.
Outer Sheath: Rubber type 5GM5.
