2YSLGCGOEU Signal & Control Cable
Applications
These control, signalling and bus cables are used for electric and electronic equipment,such as for measured value and process data processing andautomation units in open-cast mining applications,suitable forlaying alongside conveyor belts and on material handling equipment.
Standards
VDE 0250 Part 812

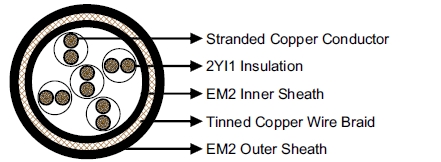

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Insulation: PE type 2YI1.
Cable Element: Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopicmaterial over the conductor assembly
InnerSheath: CM type EM2.
Screen: Tinned copper wire braid.
Outer Sheath: CM type EM2.

2YSLGCGOEU Signal & Control Cable
