NSSHCGEOEU 0.6/1kV Coal Cutter Cable (Low Tensile Stress)
Applications
These cables are used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations,e.g. for coal-cutting machines, suitable for extreme bending loads under low tensilestress.
Standards
DIN VDE 0250 Part 812

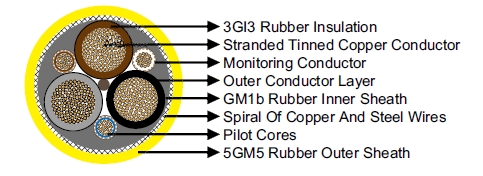

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer: Easy strippable outer conductive layer.
Pilot Cores:Copper strand and steelbraid conductor capable ofexpansion and compression with EPRrubber insulation.
Monitoring Cores: Spiral of tinned copper wires above the pilot cores, covered with a semi-conductive tape.
InnerSheath: Rubber type GM1b.
Armour/Earth Conductor:Concentric earth conductor as spiral of copper and steel wires,fibreglas tape, embedded in the outer sheath whichprevents sheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
