NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)
Applications
These cables are used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations, e.g. for coal-cutting machines, also can beoperated via guide pulleys (cable cars) or used as areeling cable (LHD), suitable for extreme bending loads, high tensile stress,and impact and crushing loads.
Standards
VDE 0250 Part 812

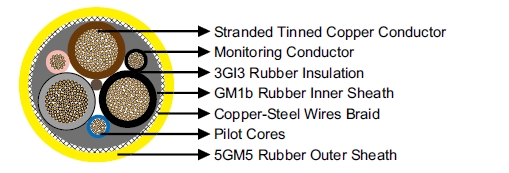

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer: Easy strippable outer conductive layer.
Pilot Cores:Copper and steel conductor capable ofexpansion and compression with 3GI3 EPRrubber insulation.
Monitoring Conductor: Copper and steel conductorcapable of expansion and compression covert with semiconductive rubber compound.
InnerSheath: Rubber type GM1b.
Armour/Earth Conductor:Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)
